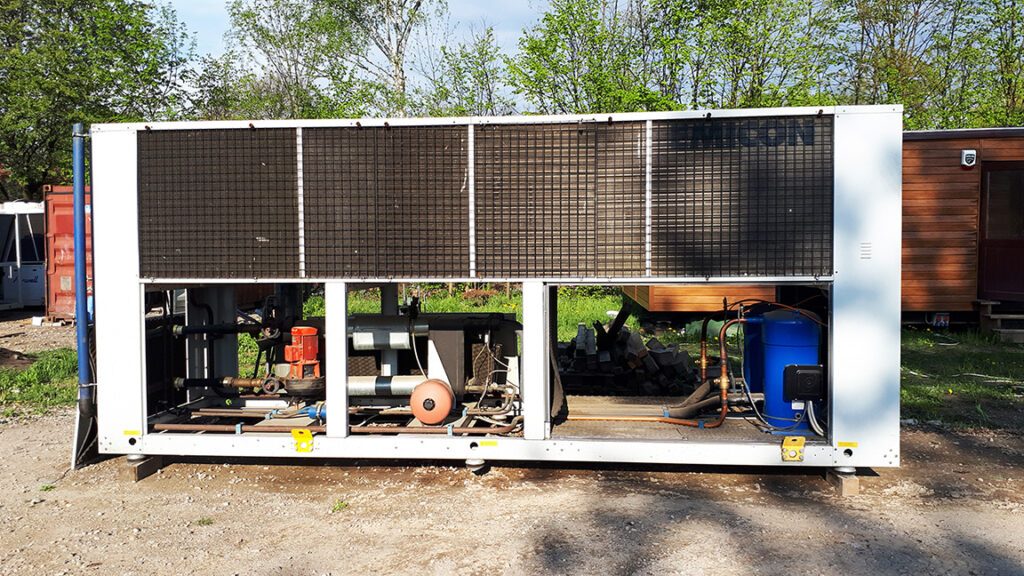

Aircooled chiller Emicon 165 kW
- Brand: Emicon
- Power: 165 kW
- Year: 2011
| Air flow | 165 kW (12/7 — 35°C) |
| Year of manufacture | 2011 |
| Version | superlownoise |
| Refrigerant circuit | 2 pieces |
| Compressors | 2 pcs. Danfoss (scroll) |
| Type of refrigerant | R407C |
| Number of fans | 4 pcs. |
| Hydraulic module | water pumps, expansion vessel |
| Dimensions | 4,8 х 1,4 х 2,2 m. |
| Working hours | 2159/441 h. |
| Weight | 2009 kg. |
| Condition | excellent |
The air cooled chillers of RAE series are designed for outdoor installation and are particularly suitable for air conditioning systems, in residential and commercial
applications.
They can also be matched to fancoils or terminal units or for water cooling in industrial processes.
They are all available with 2 refrigerant circuits.
Thanks to their compact dimensions and to the several options available, these units are particularly easy to install in small spaces and easily accessible on all sides for ordinary and extraordinary service operations.
They are completely assembled and tested in the factory and supplied with refrigerant and non-freezing oil charge. Therefore, once on site, also with pump and hydraulic tank, the units only need to be positioned and electrically and hydraulically connected.
